Detail Pages: Tiangong-1 and 2 Tiangong Space Station

The first two stations, Tiangong-1 and 2, were single module units launched, un-crewed, complete into low earth orbit. They were of similar design and remained in orbit for around six and three years respectively. A third station of similar design, but larger, was proposed but never built.

The third station to be flown, Tiangong Space Station, is a multi-modular design with currently three main modules. Each module was launched, un-crewed, separately into low Earth orbit. They were then permanently berthed together.

They were initially docked by remote control and then relocated to their final position by the crew, using a robot arm.

Tiangong Size Comparison
Tiangong Stations Size

This page gives an overview of the different basic designs of the stations with links to pages containing more technical details. Select from the sub-menu above for detail pages.

Note: Technical pages open in a new tab. Exit page to return to this page. Technical pages are not comprehensive. Use links below for more information.

Reference: Wikipedia - Tiangong-1  |  Tiangong-2  |  Tiangong-3  |  Tiangong Space Station
eoPortal - Tiangong  |  China Space Report - Tiangong   |  China Manned Space - Tiangong
Science Partner Journals - Tiangong

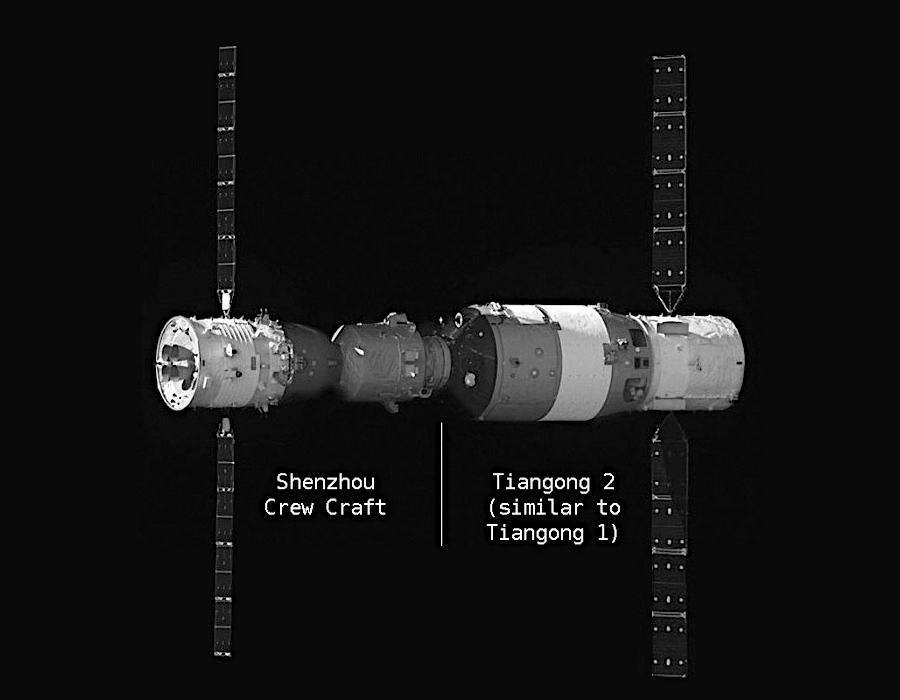

Shenzhou 11 and Tiangong-2
Shenzhou 11 and Tiangong-2 photo
(Click image to enlarge)

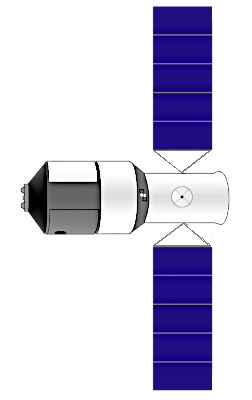

Tiangong 1 or 2
Tiangong station 1 or 2 drawing

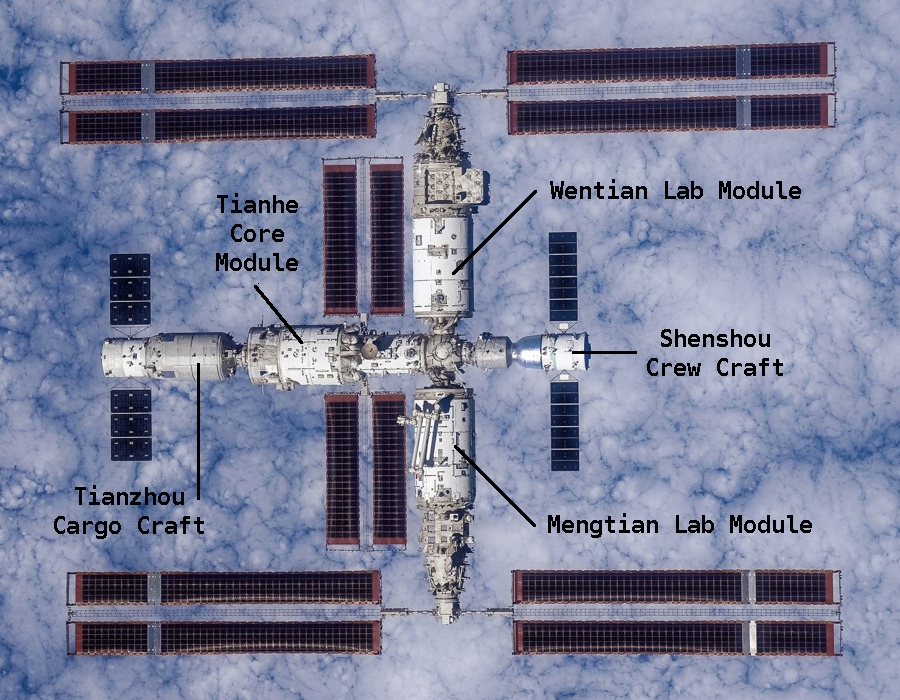

Tiangong Station
Tiangong Station photo
(Click image to enlarge)
